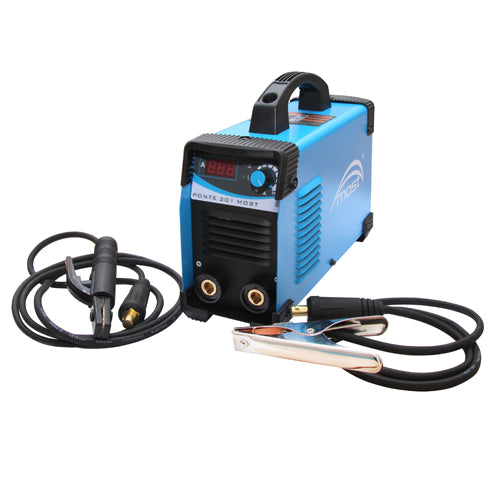

MMA PONTE 201 PRO MOST electrode welding machine

MMA inverter-rectifier welding machine for coated electrodes. Designed for demanding tradespeople looking for reliability and pure performance.

⚡ MAIN FEATURES

- Digital LCD screen displaying welding current in real time
- Reinforced case with shock-absorbing protection on the corners
- Professional 35/50 sockets for robust cable connection
- Inverter technology for exceptional arc stability

📊 TECHNICAL SPECIFICATIONS

- Power supply : 230V ±15% - 50/60Hz
- Welding range : 10-200 A
- Duty cycle: 200A @ 10% - 85A @ 60% - 63A @ 100%
- No-load voltage: 63V
- Protection: IP21S - Class F
- Dimensions: 375 x 140 x 290 mm
- Weight: 5.9 kg

🛠️ IDEAL APPS

- Metallurgical repairs
- Construction sites and maintenance
- Ironwork and locksmithing
- Demanding technical leisure activities
- On-site interventions

✅ EQUIPMENT INCLUDED

- PONTE 201 PRO MOST main station
- Ground cable with clamp
- Electrode cable with electrode holder
- Technical documentation

EXCLUSIVE BENEFITS

The PONTE 201 PRO combines the robustness of traditional welding machines with the precision of modern inverters. Perfect for those who want the essentials without compromising on welding quality.

• Power supply and tolerance: 1x230 V/50-60 Hz
• Welding current range: 10-200 A
• Welding current at duty cycle: (10% - 200 A) (60% - 82 A) (100% - 63 V)
• Maximum current consumption I1 max: 44 A
• Resting voltage: 63 V
• Dimensions: 375x140x290 mm
• Weight: 5.9 kg
• Mains fuse: 16 A
• Insulation class: F
• Protection class: IP 21S

Application : Workshop; Leisure; Professional;
